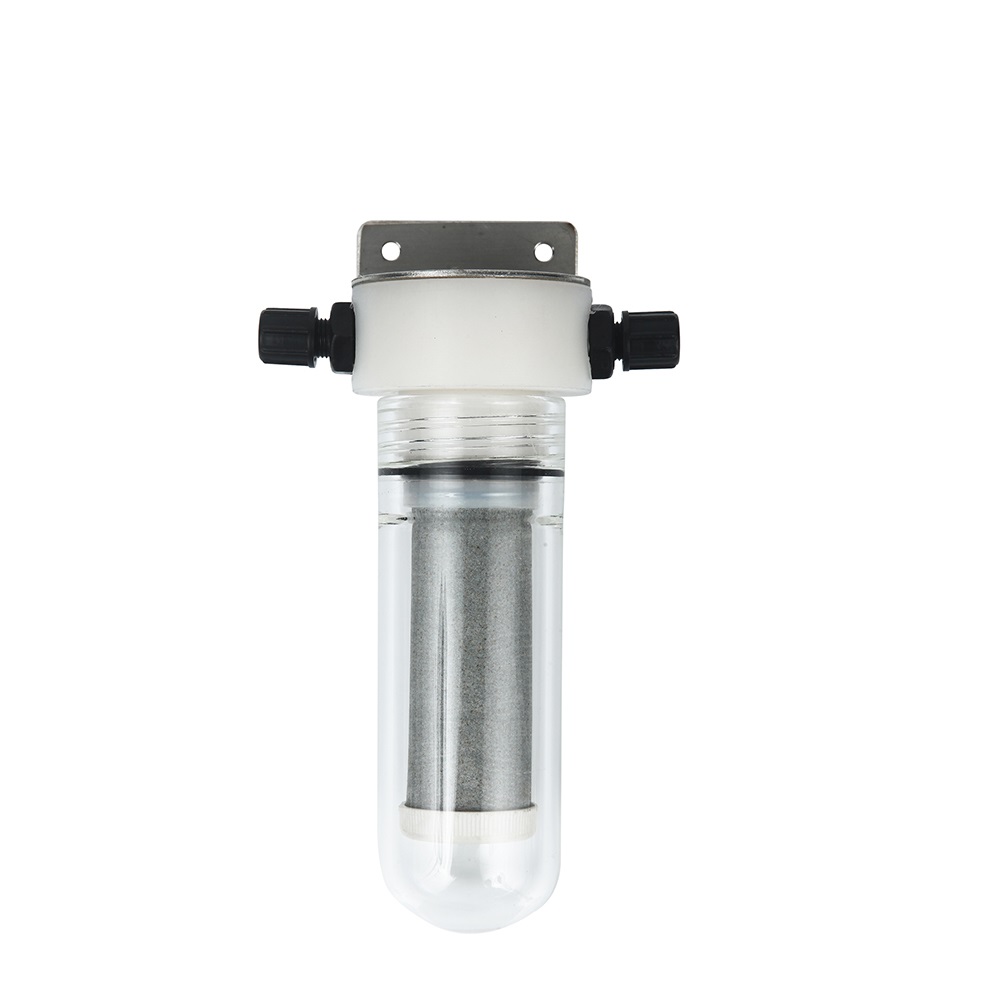

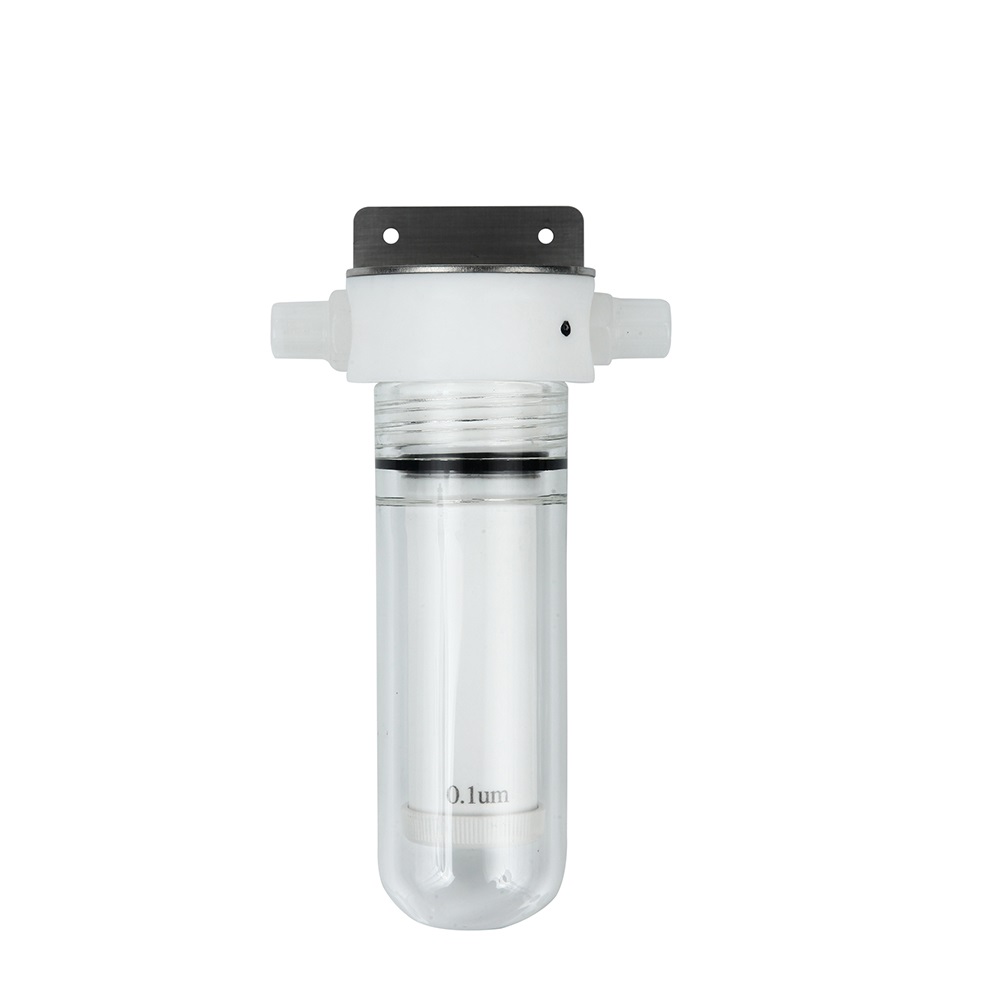

0.1um Gas Filter J-01F0.1G075

I. Technical characteristics:

• Special process glass cover is adopted, which is easy to replace and filter and can stand 250 degree

• The filter core is visible and easy to change and clean

• Base material: PTFE/PP material optional

• Filter accuracy: 0.1um, 0.5um, 1um, 2um optional

II. Technical parameter

• Sampling interface: with OD-6-1/4, NPT type connector, two

• Operating pressure: 5bar.abs

• Maximum capacity: 70cm3

• Filter material: Glass Fiber, silicon carbide(optional)

• Seal type: O type ring

• Bracket material: aluminum alloy

• Installation: wall mounted

• Filtration accuracy: 0.1-2um (optional)
