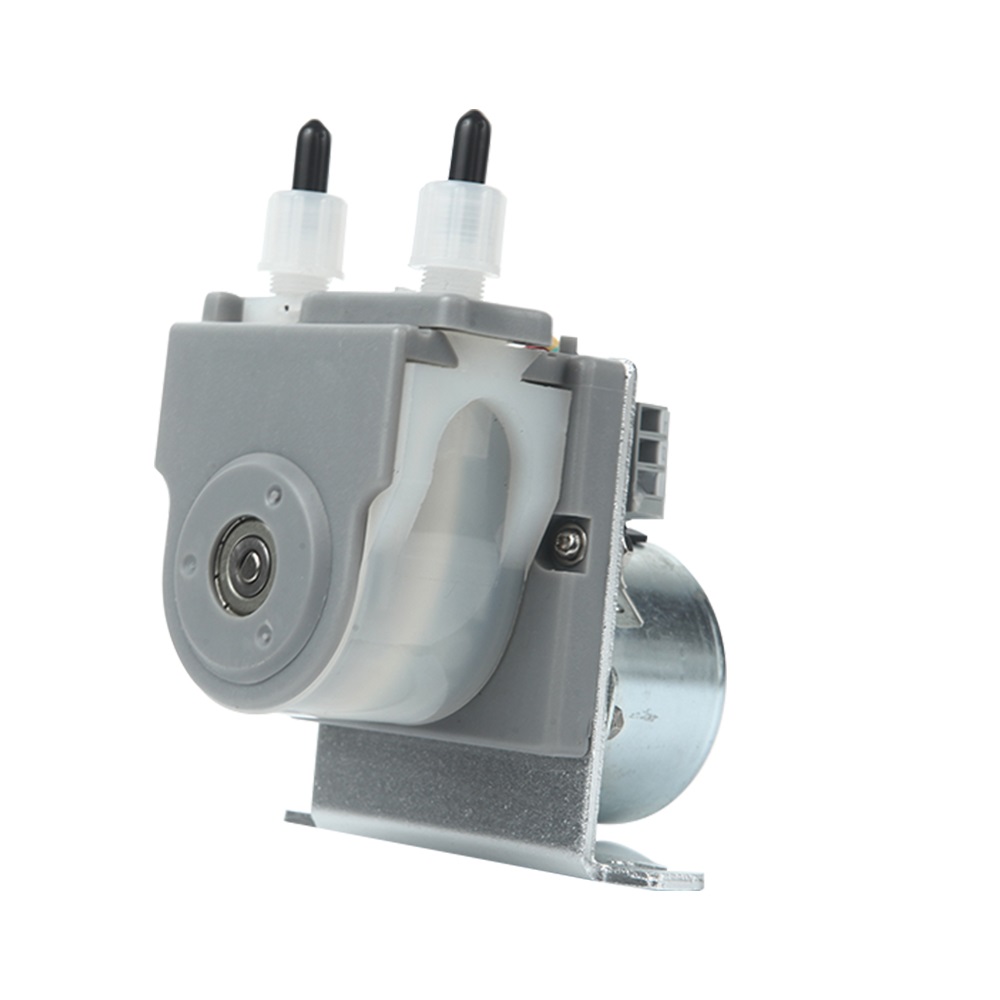

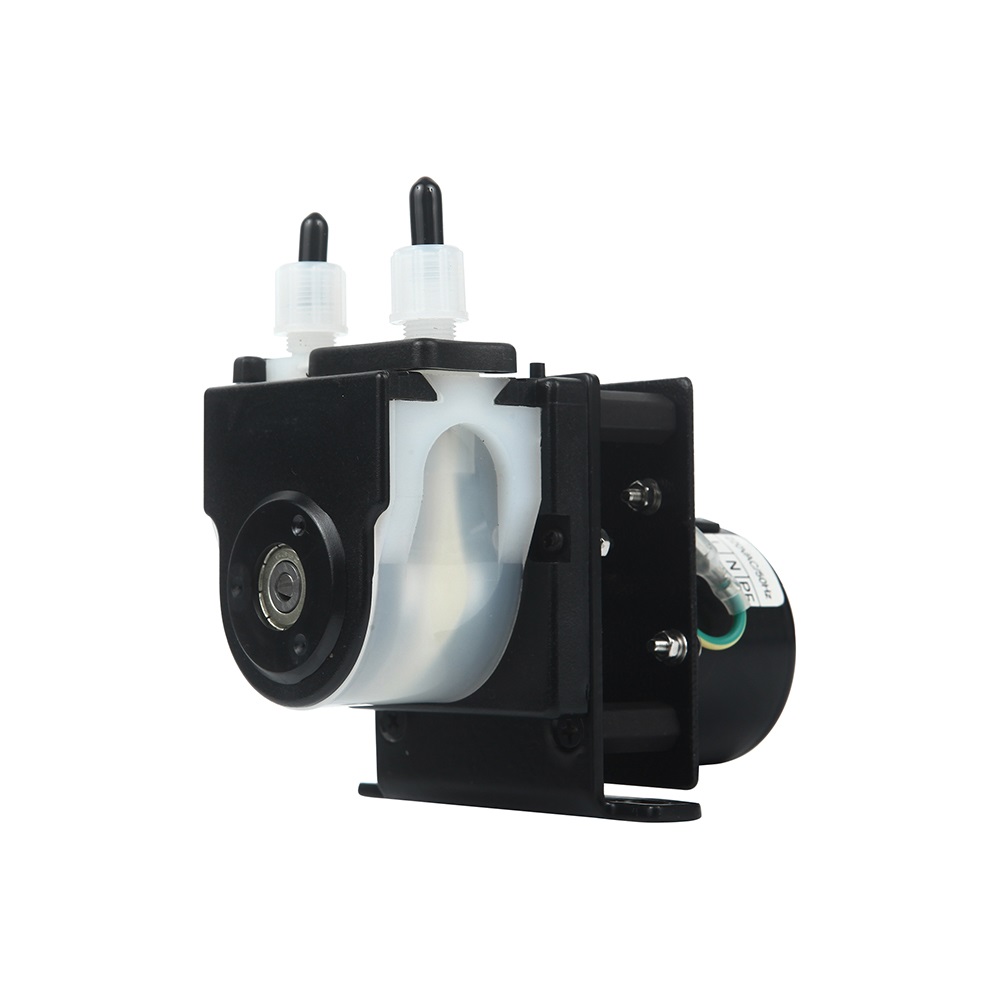

Peristaltic Pump

I. Introduction

• It applied to CEMS gas pretreatment system, adopting PVDF connect;

• PVDF gas connectors can be suitable for acid environment with anti-corrosion and anti-acid, anti-alkali performance;

• Suitable for rich moisture application

II. Specification:

1. Rotate speed: 10 R/min, optional 5R/min
2. Drainage capacity: 0.6L/h
3. Power supply: 220V AC 50HZ
4. Connecting material: PVDF
5. Inlet and outlet connector: OD6mm, PVDF
6. Working consumption: 6.5W
7. Pump pipe: Inlet pump pipe OD7.5mm/ID4.3mm L =120mm
8. Installation way: mounting installation 106mmH * 87mm W
9. Installation hole: 2-5.5mm*10mm slotted hole; hole center distance 67mm
10. Compatibility range: 62.5mm-72mm
11. Drainage direction: clockwise left in and right out
