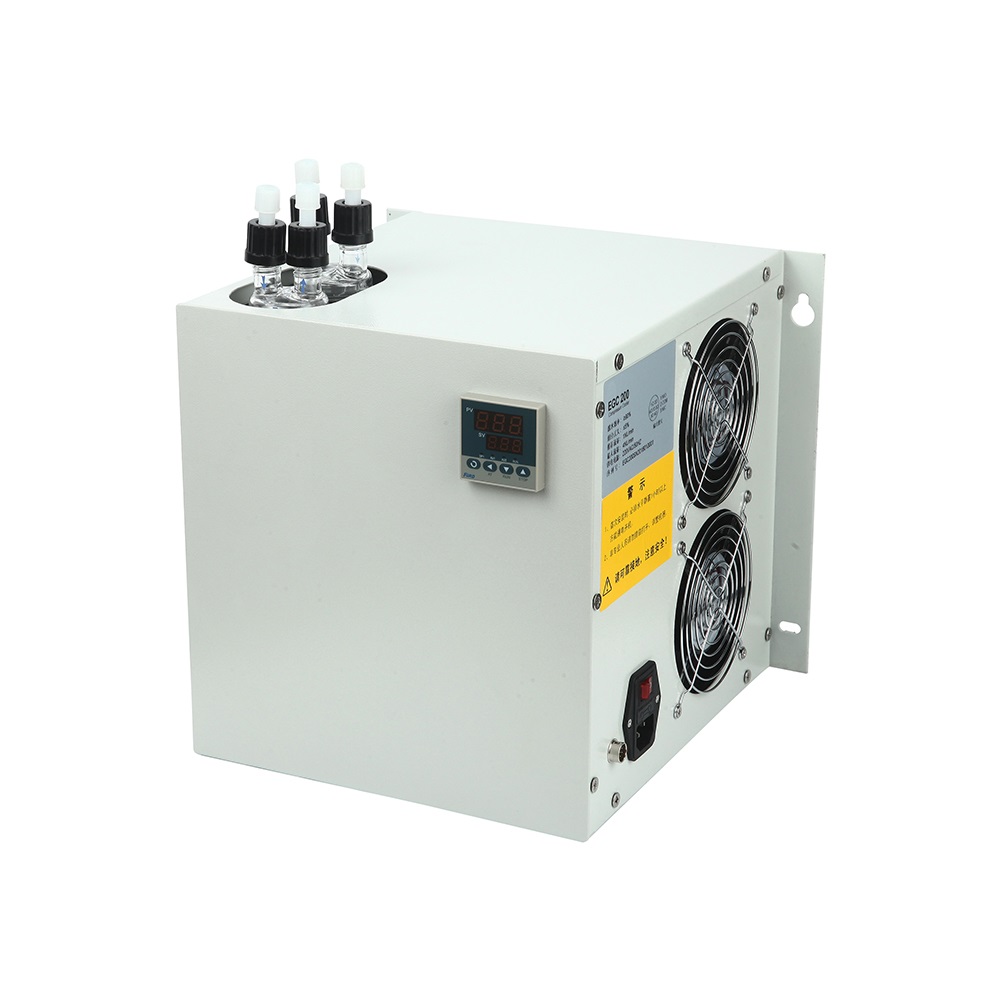

Compressed Gas Chiller CEC201

Compressed Gas Chiller CEC201

  • Condensing type: compressed
  • Condensing pipe: dual channels
  • Peristaltic pumps: two
  • Product description: Compressed Gas Chiller CEC201
  • INQUIRY

I. Introduction

CEC201 series dual-channel gas condenser is a kind of compressed high efficiency moisture removing, used in gas pretreatment system of gas analysis system. It can protect moisture and corresponding corrosion to the gas analyser and guarantee the lifespan of gas analysers.


II. Specifications

Items

Descriptions

Working ambient temperature

5℃~50℃

Inlet gas temperature

≤180℃

Inlet gas dew point

≤80℃(@ 25℃)

Outlet gas dew point

≤4℃(@ 25℃)

Condensing control temperature

Factory set at 4.0℃

Temperature controller fluctuation

3.0℃±1.0℃(@ 25℃)

Condensing method

fluoride-free compressor

Gas condensing pipe

A+B glass heat exchange pipes, diameter * heightΦ40mm*150mm

Inlet gas pressure

≤3bar

Allowed gas differential pressure range

≤3mbar(gas flow 2NL/min)

Gas capacity

250NL/min

Trouble alarm

Low temperature alarm, deviation alarm, power off alarm; alarm status dry contact output, capacity 250Vac/1A

Peristaltic pump *2 pcs

5r/min, discharge capacity 0.3L/h, left IN and right OUT

withstand voltage testing standard

AC1500V

Leak current

≤3.5mA

Inlet gas connector

OD6mm (OD8mm optional)

Water drainage port

OD6mm (OD8mm optional)

Warming-up time

≤30min

Installation method

Wall-mounted plate installation

Power supply

220VAC 50Hz

Power supply consumption

400W

Cabinet size(W×H×D)

310*280*290mm

Cabinet color

RAL7035 grey

Weight

18kg

4-20mA output

optional
