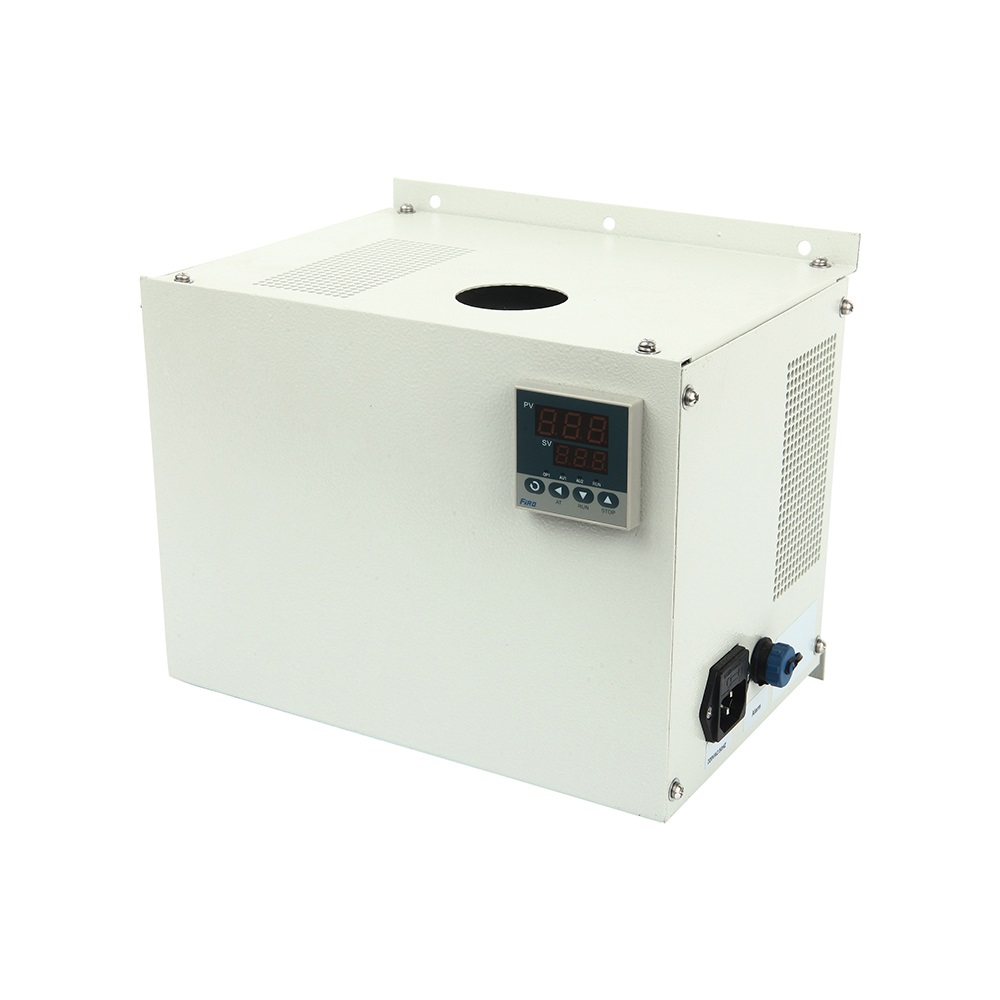

Peltier Gas Cooler BMS250
- Product description:
I. Introduction
Peltier Gas Condenser BMS250 is designed for gas conditioning system with a cost-efficiency design. It is widely used in biogas analysis system or syngas analysis system.
II. Specifications
|
Items |
Descriptions |
|
Inlet gas dew point |
≤80℃（@ 25℃） |
|
Outlet gas dew point |
≤4℃（@ 25℃） |
|
Working ambient temperature |
2℃～45℃ |
|
Gas capacity |
250NL/min |
|
Inlet gas connector |
OD6mm (OD8mm optional) |
|
Water drainage port |
OD6mm (OD8mm optional) |
|
High temperature alarming |
>=8℃ |
|
Warming-up time |
≤30min |
|
Installation method |
Wall-mounted plate installation |
|
Cabinet size（W×H×D） |
240*210*180mm |
|
Cabinet color |
RAL7035 grey |
|
Weight |
7kg |
