Pertier/compressed gas coolers

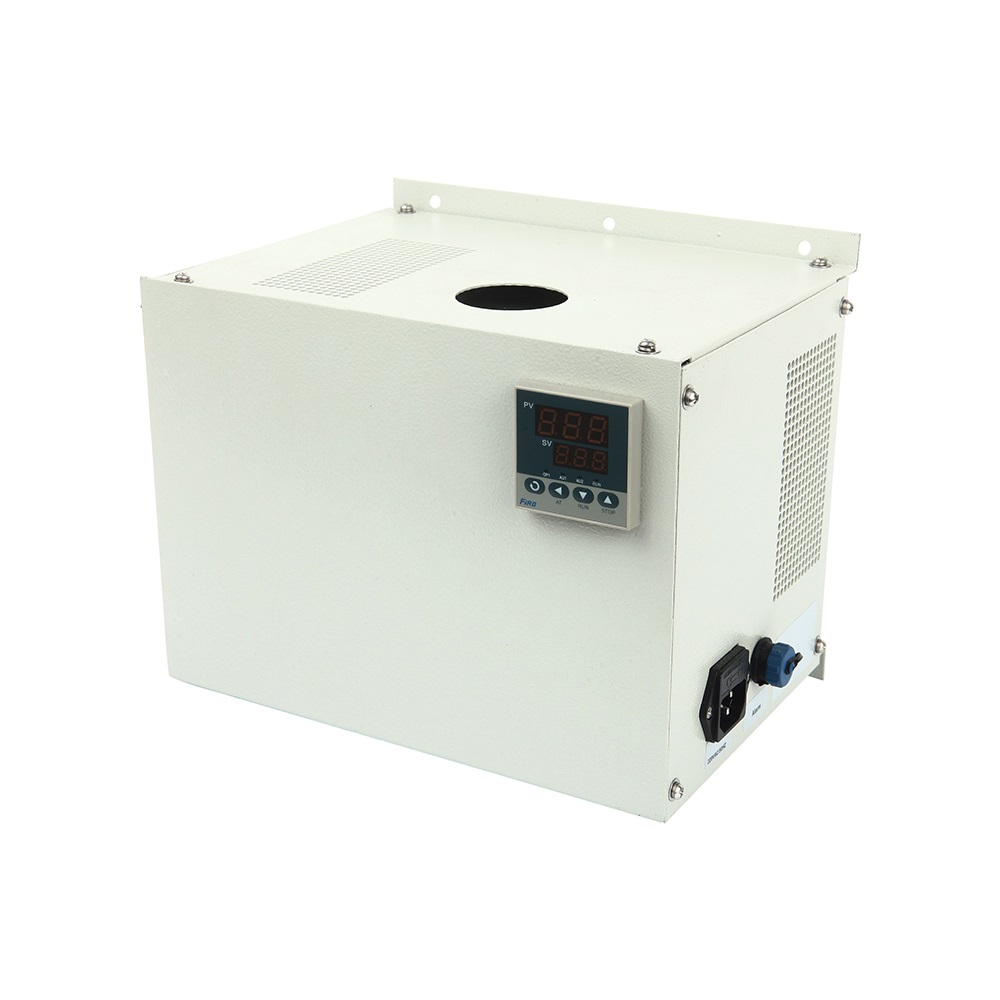

Peltier Gas Condenser BMS250

Product description:
INQUIRY

I. Introduction

Peltier Gas Condenser BMS250 is designed for gas conditioning system with a cost-efficiency design. It is widely used in biogas analysis system or syngas analysis system.

II. Specifications

Items	Descriptions
Inlet gas dew point	≤80℃（@ 25℃）
Outlet gas dew point	≤4℃（@ 25℃）
Working ambient temperature	2℃～45℃
Gas capacity	250NL/min
Inlet gas connector	OD6mm (OD8mm optional)
Water drainage port	OD6mm (OD8mm optional)
High temperature alarming	>=8℃
Warming-up time	≤30min
Installation method	Wall-mounted plate installation
Cabinet size（W×H×D）	240210180mm
Cabinet color	RAL7035 grey
Weight	7kg
