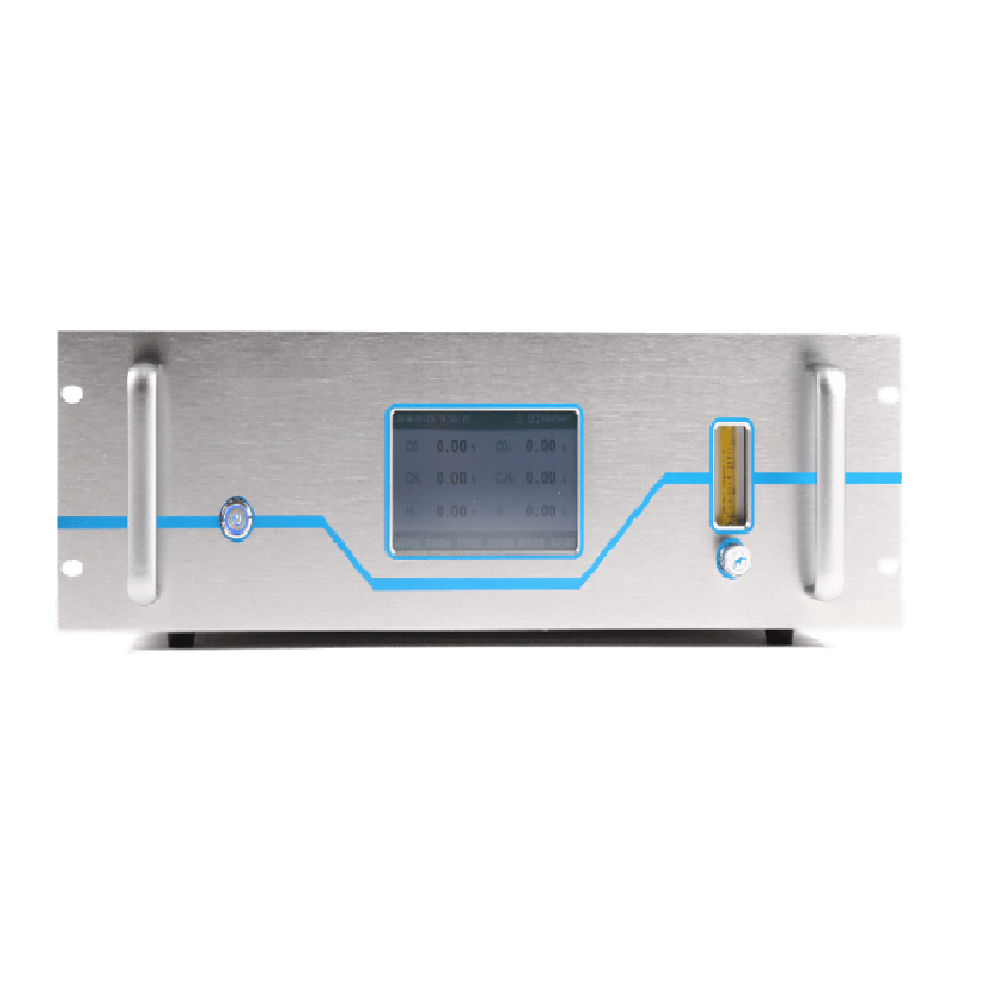

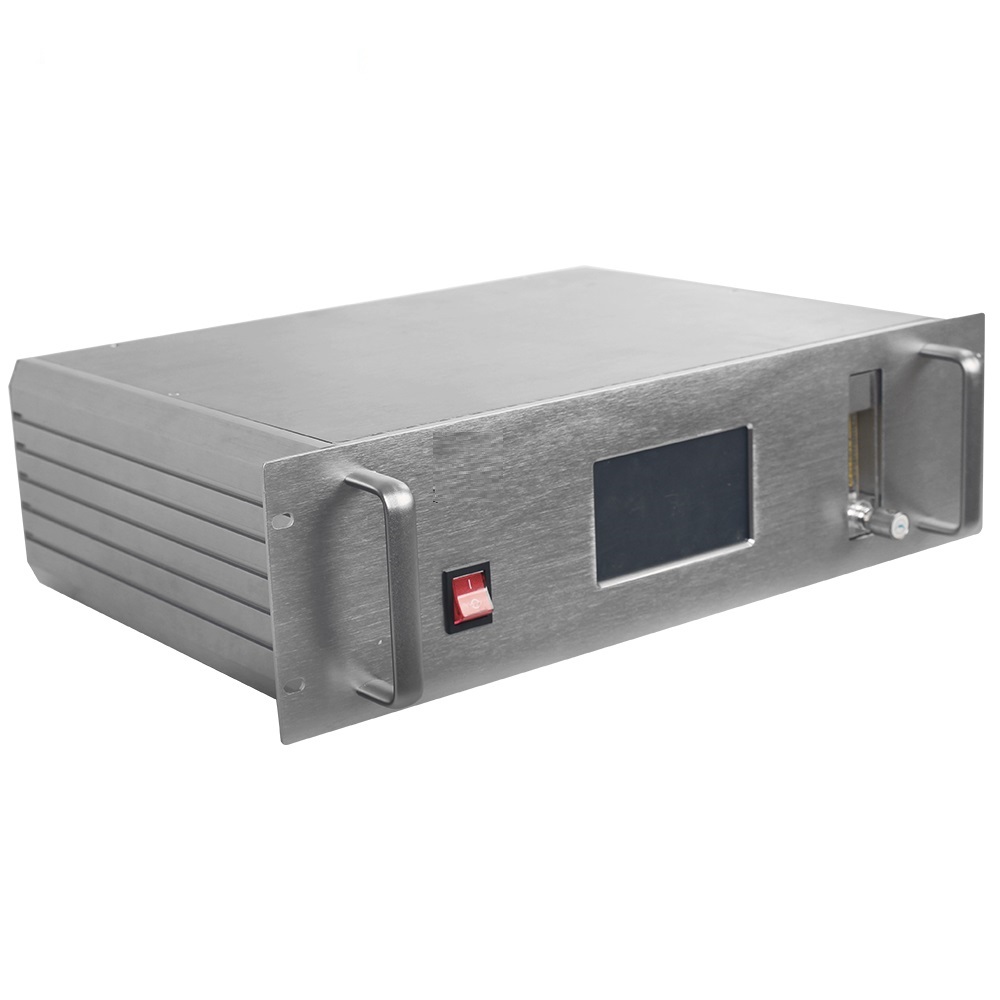

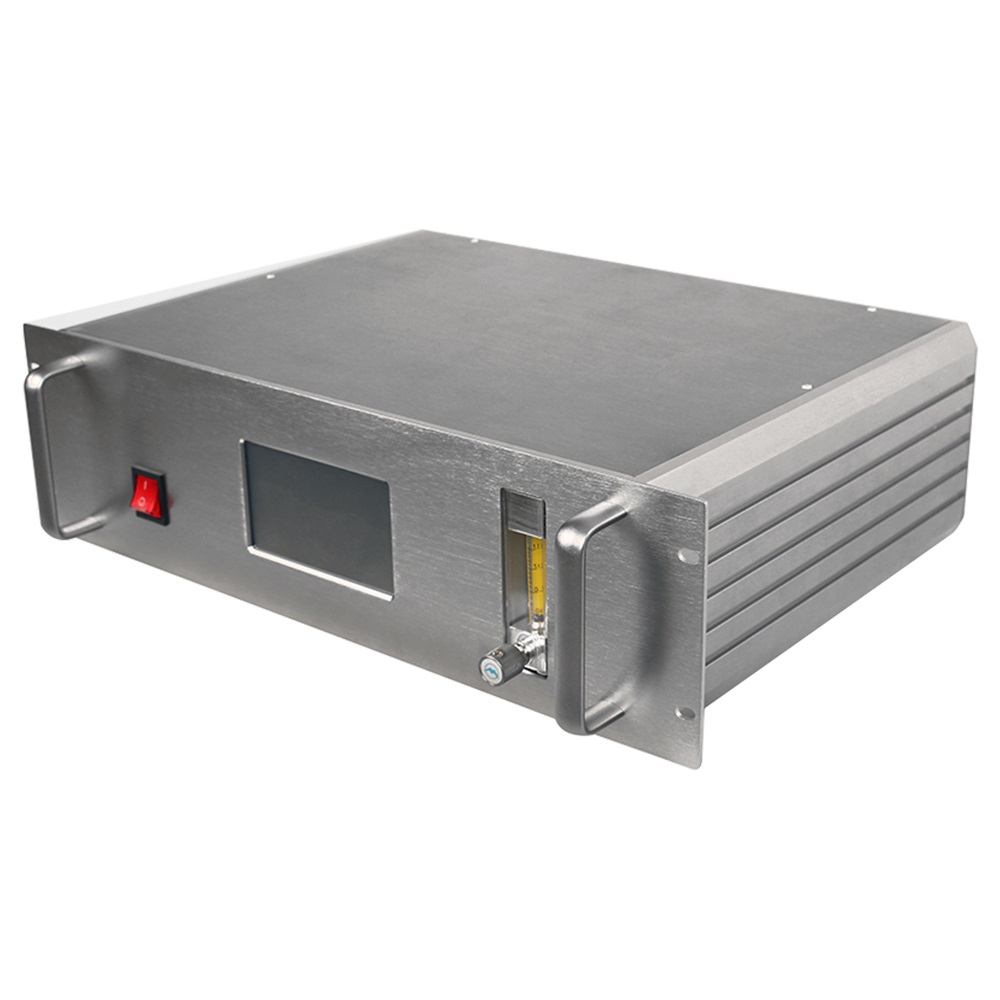

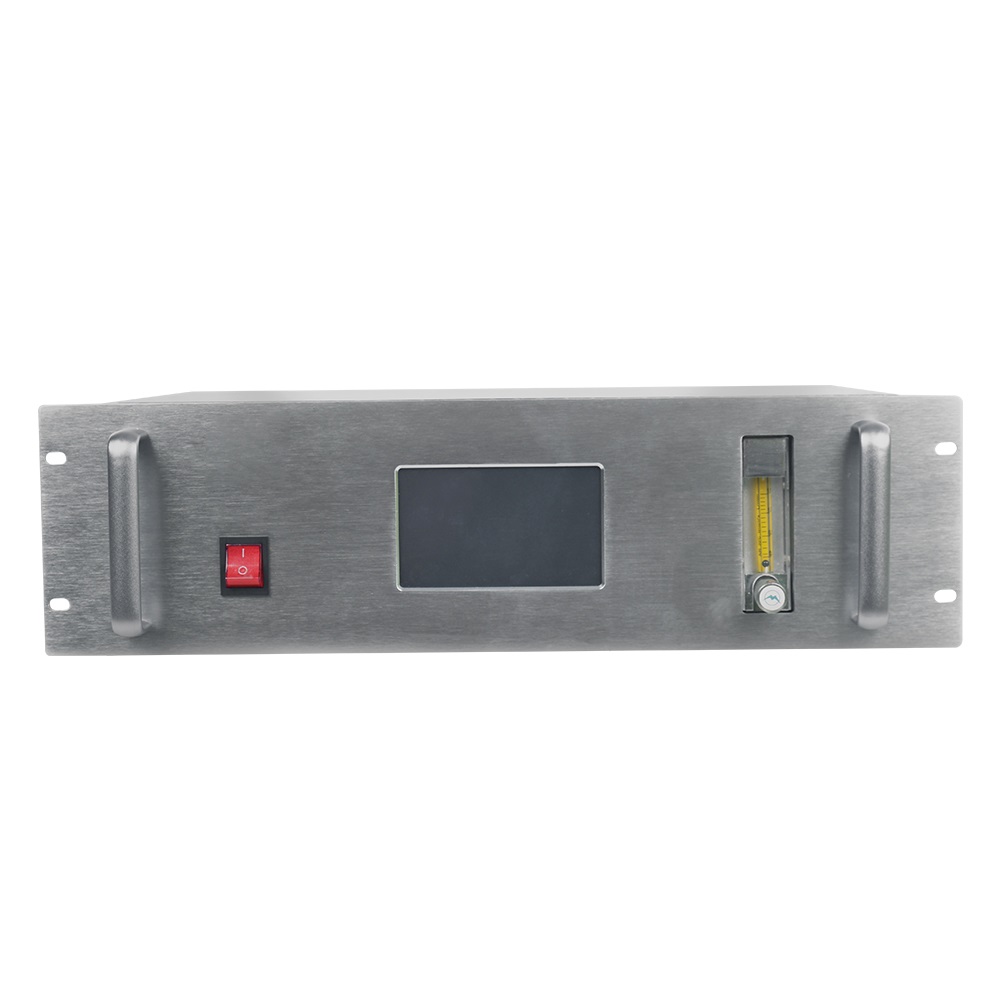

Six Gas Analyzer CH4/CO2/CO/H2/O2/CxHy

  • Detecting Gas: CH4/CO2/CO/H2/O2/CxHy
  • Measure Range: 0%vol-100%col
  • Display: colorful touch screen
  • Output: RS232/RS485/4-20mA
  • Product description: Online Continuous Syngas Monitoring System SYN-600 R consists of online continuous syngas analyser, gas conditioning system, washing system, PLC system, industrial computer system(optional). It can me
  • INQUIRY

I. Introduction

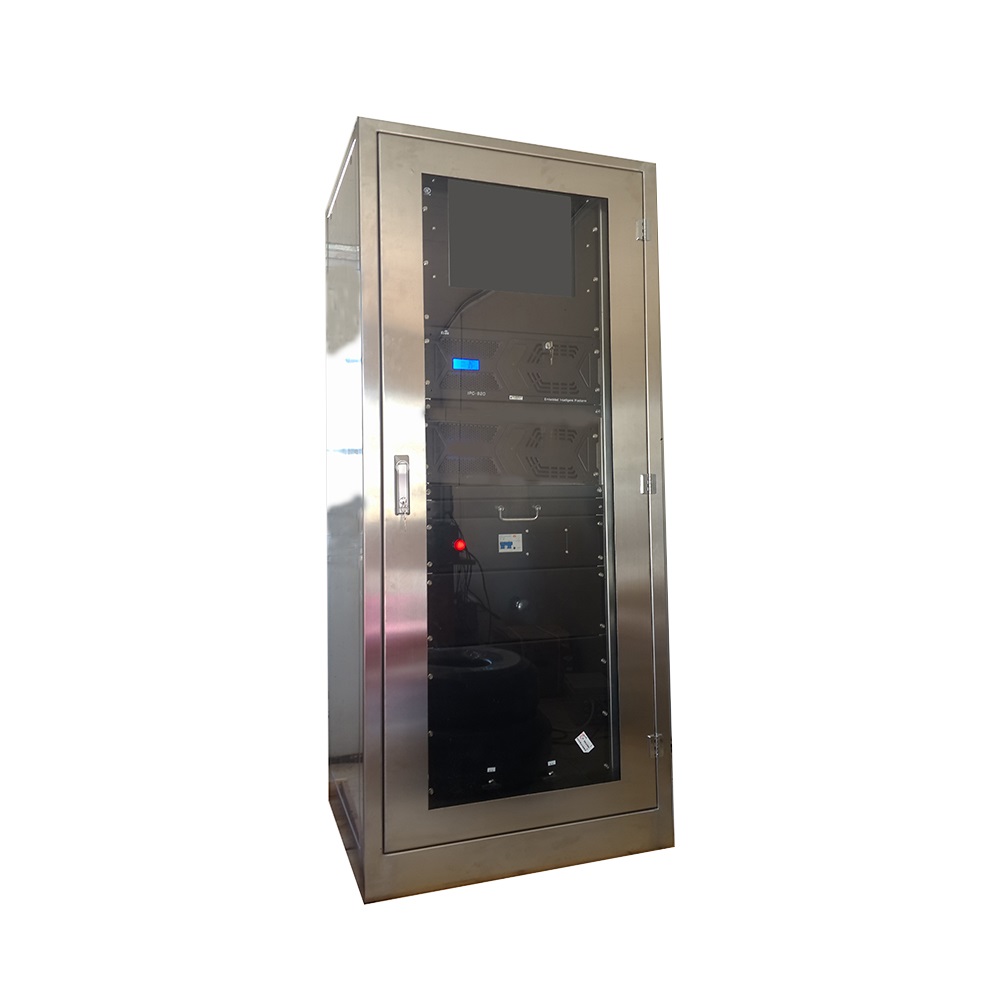

Online Continuous Syngas Monitoring System SYN-600 R consists of online continuous syngas analyser, gas conditioning system, washing system, PLC system, industrial computer system(optional). It can measure CH4,CO2,CO,CnHm,O2 and H2 at the same time in one unit, and calculating heating value in MJ/M3 or Kal/m3. It has water bubbler washing system to remove tar, and gas cooler as well as two precise filters to remove moisture and dust. All the measurement data and system status can be transited the centre control system by 4-20mA, RS485 or PLC system.

II. Features

• Using 5'' TFT LCD touch screen

• Measurement value display/real-time curve display

• Calibration menu and alarm setting with password protection

• One set back to factory setting

• PLC automatically control sampling, water washing, diagnosis

• Two precise gas filter and gas cooler to remove dust and moisture

• Optional with industrial computer to realize remote data transmission.

III. Specifications

Measurement

CO, CO2, CH4, CnHm, O2, H2 and gas calorific value calculation

Calculation

High Heating Value or Low Heating Value in MJ/m3 or kcal/m3

Technology

CO, CO2, CH4, CnHm: proprietary dual beam NDIR detectors

O2: industrial electrochemical cell

H2: MEMS thermal conductivity detector

Ranges

CO/ CO2:/CH4 / H2: 0-100%, CnHm : 0-10%, O2: 0-25%

Other ranges customizable on request without price increase

Resolution

0,01%

Accuracy

CO/CO2/CnHm/CH4:±2%FS;H2/O2:±3%FS

Repeatability

≤ 1%

Gas conditions

Flow:0.7L-1.2/min, internal gas sampling pump, external flow meter with needle valve

Pressure:2kPa≤ inlet pressure≤ 50kPa

Quality: No dust, moisture, tar (external safety filter and optional gas washing unit)

Operating conditions

Tamb : -5°C to 50°C / Pamb : 86 to 108 kPa / RH : 0-90% non-condensing

Response time (T90)

≤ 15 sec (NDIR)

Communication interface

4-20mA; RS232/RS485

Power supply

External 11V-220 VAC-50Hz

Dimensions and weight

Gas analysis system :1800(L) x 800 (H) x 800 (W) mm /200-250kg

Water bubble washing system: 1200 (L) x 800 (H) x 300 (W) mm / 75-100kg


IV. Applications


  • coal chemical process
  • steel making process as blast furnace, converter, coking, direct iron ore smelting reduction
  • syngas production from Biomass and coal gas gasification processes
